Categories
1. Surface Film: Acrylic Type
2. Type of Adhesive: Pressure-Sensitive Type
3. Strength of Adhesive: at the condition of 0.8kg, 5min, total length: 10cm, the falling Length≤ 2cm
4. Operation temperature: 20 °C
Detailed Product Description

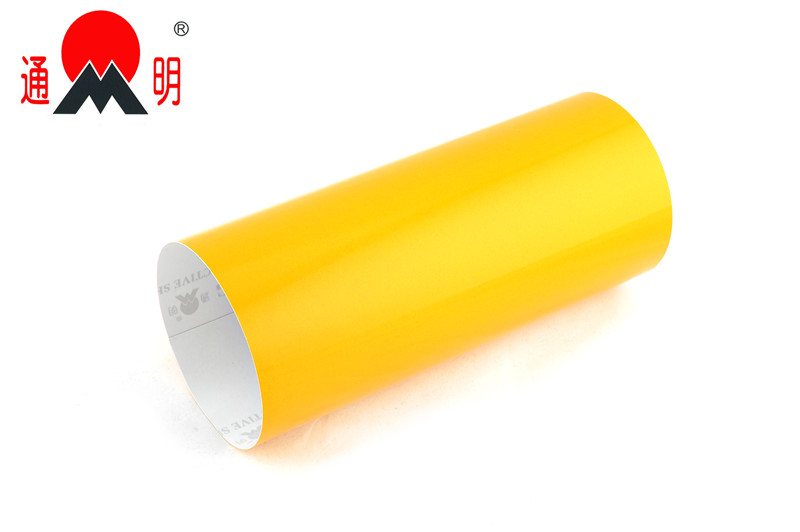

TM3200 Yellow Reflective Film For Traffic Signs
We can provide 5cm,10cm and so on. Left and right pattern both available.
TM3200 Yellow Reflective Film For Traffic Signs
Feature: tearable, can be screen printed
Service life: 3 years
Specification: 1.22m x 45.7m, can be cut into small rolls
Available color: white/red; Yellow/red; Yellow/Black; White/Green; White/Orange; White/Blue
Other technical datas:
1. Surface Film: Acrylic Type
2. Type of Adhesive: Pressure-Sensitive Type
3. Strength of Adhesive: at the condition of 0.8kg, 5min, total length: 10cm, the falling Length≤ 2cm
4. Operation temperature: 20 °C
5. Working temperature: -20°C --- 60°C
6. weight per sqm: 345g
7. Color chromaticity:Standard light source : D65 Observation condition: 45/0 Observation angle: 2 degree.
color | Color Chromaticity | Luminence | |||
X Y | X Y | X Y | X Y | Factor | |
White | 0.350 0.360 | 0.300 0.310 | 0.285 0.325 | 0.355 0.375 | ≥0.27 |
Yellow | 0.545 0.454 | 0.464 0.534 | 0.427 0.483 | 0.487 0.423 | 0.16---0.40 |
Red | 0.690 0.310 | 0.658 0.342 | 0.569 0.341 | 0.595 0.315 | 0.03---0.10 |
Green | 0.007 0.703 | 0.026 0.399 | 0.177 0.362 | 0.248 0.409 | 0.03—0.10 |
Blue | 0.078 0.170 | 0.137 0.038 | 0.210 0.160 | 0.150 0.220 | 0.01---0.10 |
